Theben Liiketunnistin theLuxa S180 WH, valkoinen

- Motion detector (PIR)
- Automatic lighting control based on presence and brightness

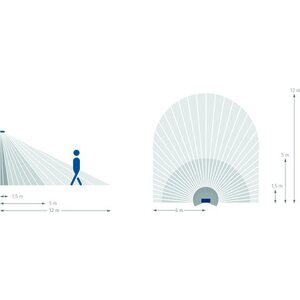

- 180° detection angle
- For outdoor use

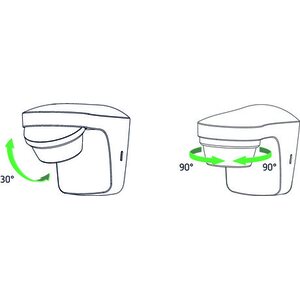

- Sensor head can be turned by ± 90° horizontally and by 30° downwards/upwards
- Adjustable brightness switching value and switch-off delay
- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
- Area limit via stickers

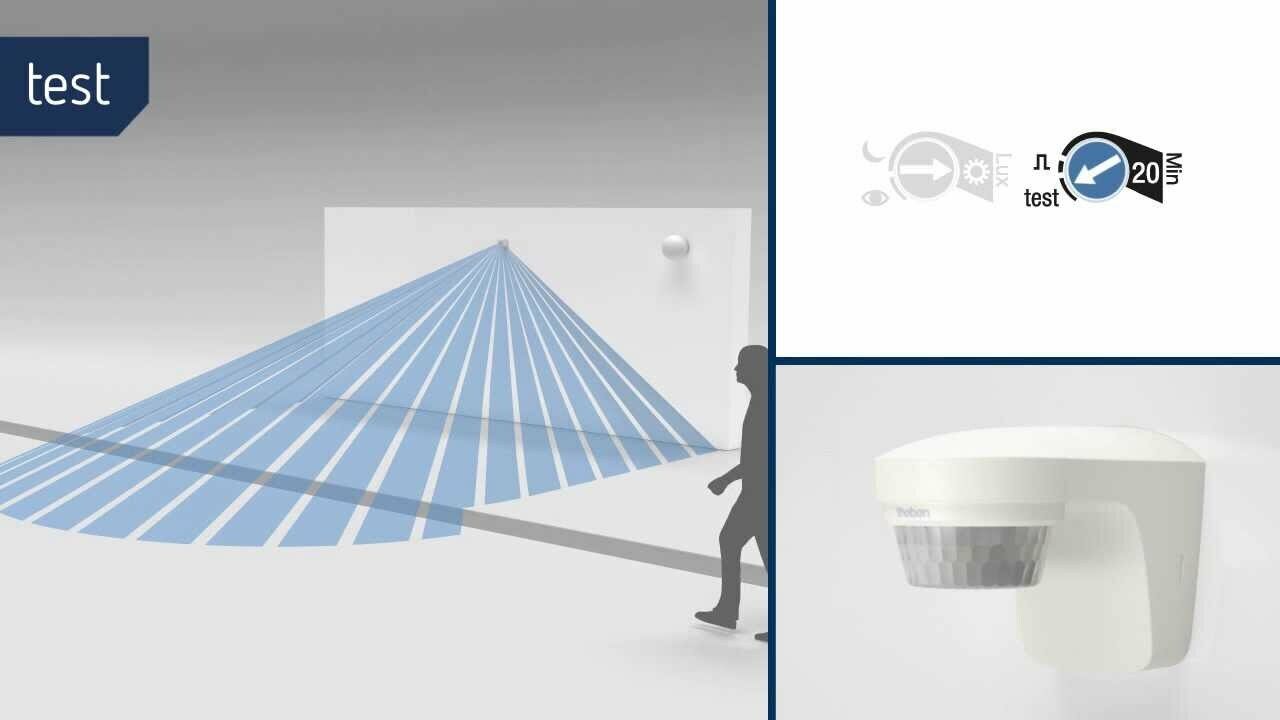

- Test function for checking detection area

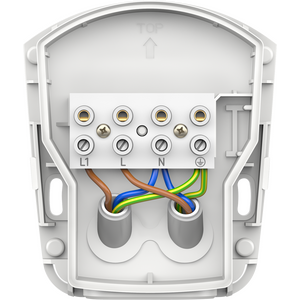

- Single-handed plug-in installation

Operating voltage: 230 V AC
Frequency: 50 Hz
Stand-by consumption: <1 W
Light measurement: Mixed light measurement
Number of channels: 1
Installation type: Wall installation
Setting range brightness: 5 – 1000 lx
Switching capacity light: 10 A (at 230 V AC, cos φ = 1), ,
Detection angle: 180°
Light switch-off delay: 5 s-15 min
Incandescent lamp load: 2300 W
Fluorescent lamp load (conventional) parallel-corrected: 350 VA 37 µF
Fluorescent lamp load (conventional) series-corrected: 400 VA
LED lamp < 2 W: 50 W
LED lamp 2-8 W: 150 W
LED lamp > 8 W: 150 W
Lamps: Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Ambient temperature: -20 °C … +40 °C
Protection class: II
Type of protection: IP 55
